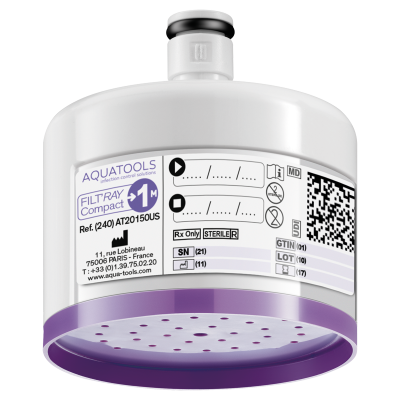

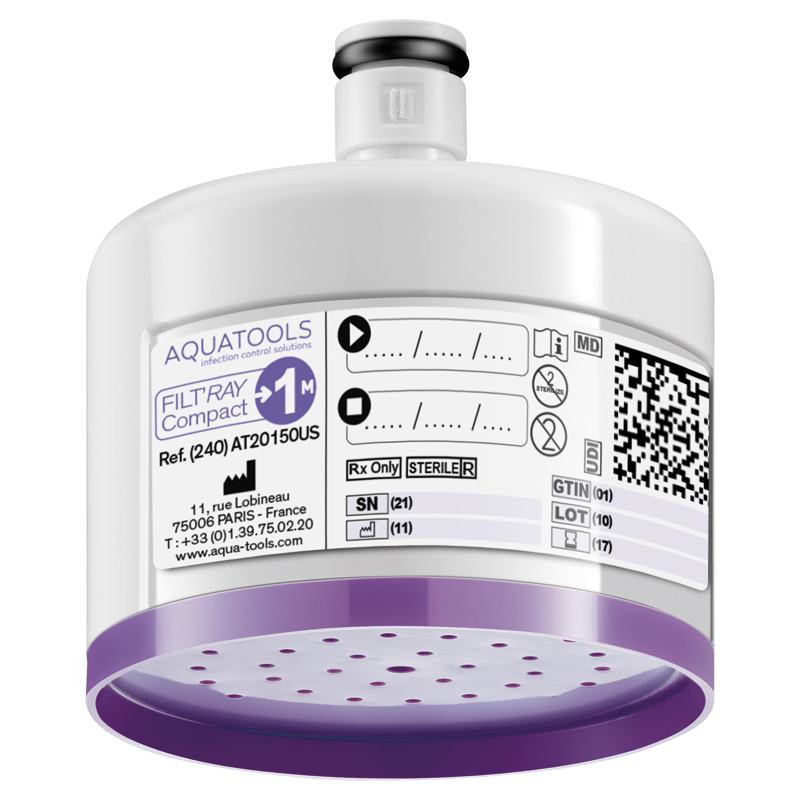

FILT'RAY Compact 1-month faucet and wall-mounted shower filter
Ref. AT20150US
Sterile
Sterile
DESCRIPTION
FILT'RAY Compact 1-month faucet and wall-mounted shower filter
Ref. AT20150USAQUATOOLS anti-Legionella and all-germ faucet and wall-mounted filter, shower flow.
Device material: ABS.
Membrane type: tubular microfiltration.
Membrane material: polyethylene.
Molecular weight cut-off: 0.1 μm nominal and 0.2 μm absolute sterilizing grade.
Filtration flow rate: 1.43 gal/min at 43.5 psi and 0.78 gal/min at 14.5 psi
(filter only, excludes any flow rate restriction in the faucet).
Maximum upstream pressure at the point-of-use: 72.5 psi.
Maximum lifespan: 1 month from installation.
Thermal shock resistance: 158°F for 30 minutes.
Chemical shock resistance: active chlorine levels of up to 100 ppm for 2 hours (cumulative total).
Sterile filter.
FILT’RAY Compact sterile disposable water filters are:
CE marked Class Is Medical Devices in Europe that comply with European Regulation EU 2017/745 CE Marking year 2023;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance.
Box of 10. Each filter is individually wrapped and sterile.
Device material: ABS.
Membrane type: tubular microfiltration.
Membrane material: polyethylene.
Molecular weight cut-off: 0.1 μm nominal and 0.2 μm absolute sterilizing grade.
Filtration flow rate: 1.43 gal/min at 43.5 psi and 0.78 gal/min at 14.5 psi
(filter only, excludes any flow rate restriction in the faucet).
Maximum upstream pressure at the point-of-use: 72.5 psi.
Maximum lifespan: 1 month from installation.
Thermal shock resistance: 158°F for 30 minutes.
Chemical shock resistance: active chlorine levels of up to 100 ppm for 2 hours (cumulative total).
Sterile filter.
FILT’RAY Compact sterile disposable water filters are:
CE marked Class Is Medical Devices in Europe that comply with European Regulation EU 2017/745 CE Marking year 2023;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance.
Box of 10. Each filter is individually wrapped and sterile.
ADVANTAGES

Anti-Legionella and all-germ

Space-saving

Optimized position: angled connection

Lifespan: 1 month after installation

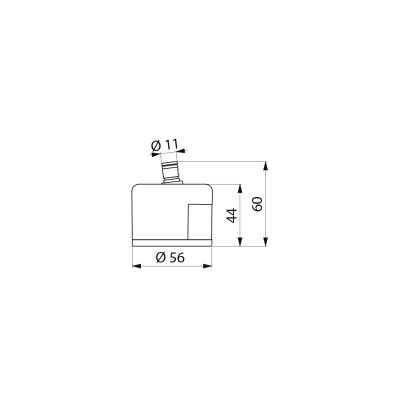

TECHNICAL CHARACTERISTICS
FILT'RAY Compact 1-month faucet and wall-mounted shower filter
Ref. AT20150US| Technology | Point-of-use filtration |
| Height | 1.73 in; 44 mm |
| Flow rate | 0.78 gal/min at 14.5 psi, 1.43 gal/min at 43.5 psi and 1.6 gal/min at 72.5 psi. 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar |
| Diameter | 2.2 in; 56mm |
| Lifespan | 1 month |
VARIANTS
| AT20151US |
|---|
VARIANTS
| AT20151US |
|---|
